Home  >  Recorders & Data Acquisition > Data Acquisition > IOtech DaqBoard/3000 Series High-Speed Data Acquisition Boards

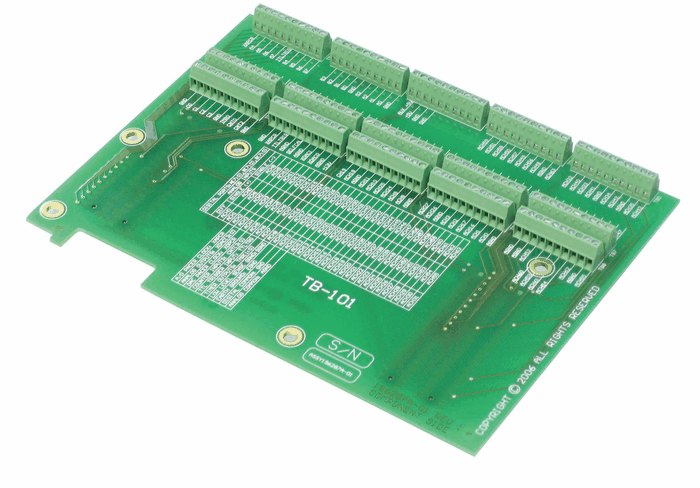

Termination Board with Screw-Terminals for DaqBoard/3000USB Boards I/O

EW-18806-60
$199.00 USD/EACH

Usually ships in 7 days.
Qty:

  • USB and PCI boards for multi-function data acquisition and control applications

These series of high speed USB and PCI boards offer a 1-MHz A/D with 16-bit resolution. Each board provides analog input, high speed digital I/O, counters (including quadratrure encoder measurement), timer outputs, and optional analog outputs. Built in set point functionality provides low latency output control as low as 2 µSec. These high speed 3000 series boards meet the most demanding data acquisition and control application requirements.
USB Data Acquisition Boards are equipped with a 68-pin SCSI and 40-pin headers for signal connections. Optional terminal board (18806-60) provides easy screw terminal connections. The terminal board mounts directly onto the DaqBoard with included hardware. Four on-board thermocouple input channels are also included on each DaqBoard.
PCI Data Acquisition Boards feature a 68-pin SCSI connector for signal connection along with an HDMI expansion connector (except model 18806-28) for connecting to a PDQ30 expansion module which provides an additional 48SE/24DE analog inputs along with thermocouple measurement capability. Optional signal connection accessories include screw terminal board (18806-62) or BNC connection box (18806-66).
DaqView™ Software
Easily set up your hardware, acquisition, and display parameters without programming via a simple spreadsheet-style screen. DaqView is a full-featured software package that provides real-time displays in digital, dial, bar graph, strip chart, and scope style formats. Export data directly to Excel or a variety of output formats including Text, .wav, UFFA, and UFFB.
Specifications
Product Type High Accuracy Data Acquisition Boards
Brand IOTech
Manufacturer number TB-101
Model TB-101
