Home  >  Pumps > Metering Pumps > Piston Pumps > Series Q Valveless Piston Pump Systems > Single-Head, Variable-Speed AC Drives with Separate Speed Controller

Series Q single head, variable-speed AC drive with controller, 1800 spm maximum, 110 VAC

EW-07104-32
$2,185.00 USD/EACH

Usually ships in 7 days.
Qty:

  • Interchangeable with all pump heads on facing page

  • Set flow anywhere from 0 to 100% of maximum flow rate—drives offer better than ±1% accuracy

  • Rated for continuous duty

  • Drives with explosion proof motors are designed for applications in Class I, Group D, Division 1 hazardous areas

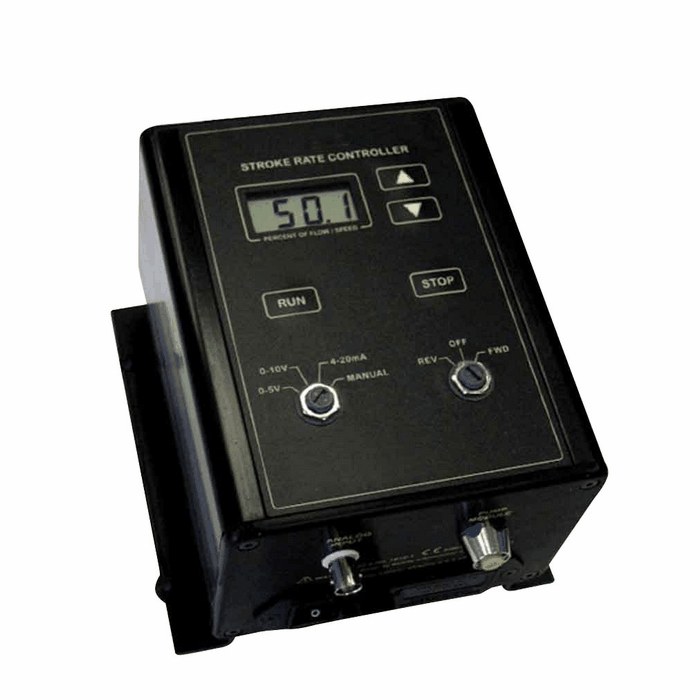

For additional speed control, choose drives that have a separate speed controller for precise and repeatable setting of stroke rates from 0.1 to 99.9%. Controllers accept 4 to 20 mA input for remote control or a digital potentiometer for manual control. Pedestal drive (model 07104-40) is for chain-, belt-, or shaft-coupling to rotating machine elements or to your motor.
Specifications
Product Type Piston Metering Pumps
Max pressure 100 psi
Dimensions Motor: 10"L x 4 7/8"W x 4 5/8"H
Controller: 7 1/2"L x 4 3/4"W x 2 1/4"H
Pump type Piston
Electrical connections Cord and plug
Motor (hp) 1/27
Motor type TENV with 4-20 mA or stepless control from 0.1 to 99.9%
Power (VAC) 100 to 240
Power (Hz) 50/60
Power (Amps) 0.75
Strokes per minute (Max) 1800
Duty cycle continuous
Max temperature (º C) 40
Max temperature (º F) 104
Min temperature (º C) 4
Min temperature (º F) 39
Accuracy ±1%
