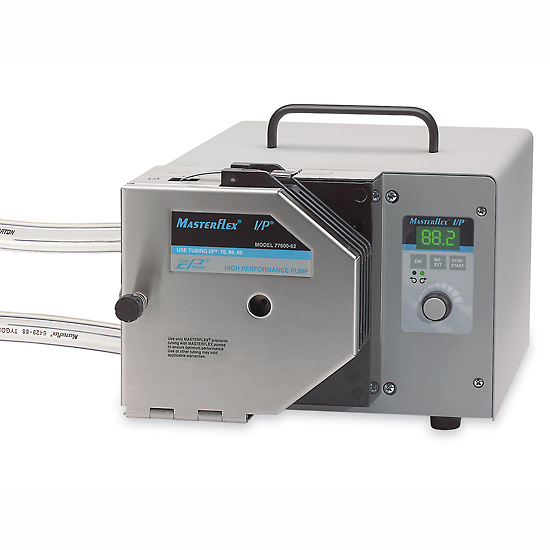

Masterflex I/P precision brushless pump with analog remote and High-Performance pump head, 115/230 VAC

EW-77965-10
$3,440.00 USD/EACH

Call 1-888-358-4705 for availability.
Qty:

  • Flow: 0.7 to 17 LPM (0.2 to 4.5 GPM) with included I/P® 88 tubing; flow rate depends on motor rpm and tubing size.

  • Three-turn speed control offers precision and repeatability—LED display shows percent speed with 1% resolution

  • 1/3-hp brushless motor handles challenging applications with minimal maintenance

  • Non-chip epoxy-coated, IP55-rated steel and aluminum enclosure protects against moisture, chemicals, and dust

  • Compact drives are light enough to carry with one hand, but powerful enough to drive two pump heads

I/P® brushless process drives offer heavy-duty performance for demanding process applications. Robust, 1/3-hp brushless motor drives up to two pump heads with any tubing formulation, while eliminating the cost and inconvenience of brush replacement.
Remote inputs: 4 to 20 mA, 0 to 10 V, start/stop, and reverse (requires 77300-32 remote cable kit, sold separately)
Remote outputs: “pump ready” signal and 4 to 20 mA outputs (requires 77300-32 remote cable kit, sold separately)
Stop/start, change pump direction, or switch between local and remote control using the sealed keypad with separate on/off switch and three-turn speed control potentiometer.
What’s included: 6-ft (1.8-m) line cord with IEC320/CEE 22 connector coupler; 15-pin circular water
Specifications
Product Type Peristaltic Pump
Min flow rate (LPM) 0.7 LPM (0.2 GPM)
Max flow rate (LPM) 17
Tubing 06429-88
Drive 77411-00
Control type Analog Variable speed
Pump head 77600-62
rpm 33 to 650
Power (VAC) 115/230
Power (Hz) 50/60
Power (Amps) 3.5 A at 115 VAC, 1.8 A at 230 VAC
Manufacturer number 77965-10
Pump Series I/P
Brand Masterflex
