- Fully user configurable—adapt to a wide range of applications
- All models feature universal input and built-in self test
- Design your own system with optional features and advanced functions
Basic Recorders are fully programmable in the field via DIP switches. Select pre-configured input type, range, and chart speed.

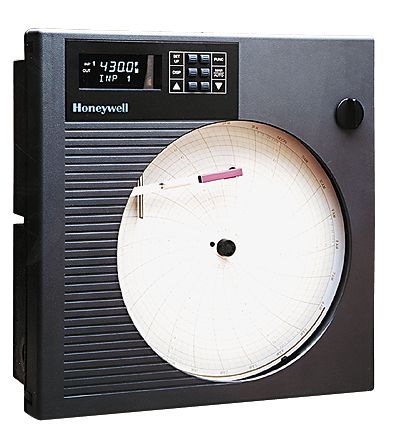

Digital Display Recorders let you view results on their bright, vacuum fluorescent display. Configure recorder via integral keypad; choose from a wider selection of input types, ranges, and chart speeds.
Recorders come built with a stepper motor for precise operation. The molded housing has a gasketed door and acrylic window to meet NEMA 3 requirements; panel on surface mount.
Honeywell® DR4300 recorders are available with additional options and advanced functions. For a complete list of options and ordering information see "Customize Your DR4300 Process Recorder" at right.
| Product Type |
Temperature Recorders |
| Acquisition rate |
0.33 sec |
| Input impedance |
DC voltage: 200 K ohm
RTD: 13.3 K ohm
Current: 250 ohm
All others:10 M ohm |
| Chart size |
10 in diameter |
| Accuracy |
±0.10% of span (field calibrated) |
| No. of channels |
2 |
| Panel cutout |
12.7 in W x 12.7 in H (32.3 cm W x 32.3 cm H) |
| Chart speed |
1 to 744 hrs |
| Dimensions |
14 in W x 14 in H x 5.875 in D (35.5 cm W x 35.5 cm H x 14.8 cm D) |
| Model |
DR4312-0000-G0100-0000 |
| Manufacturer number |
DR4312-0000-G0100-0000 |
| Power |
100 to 240 VAC, 50/60 Hz |
| Brand |
Honeywell |
