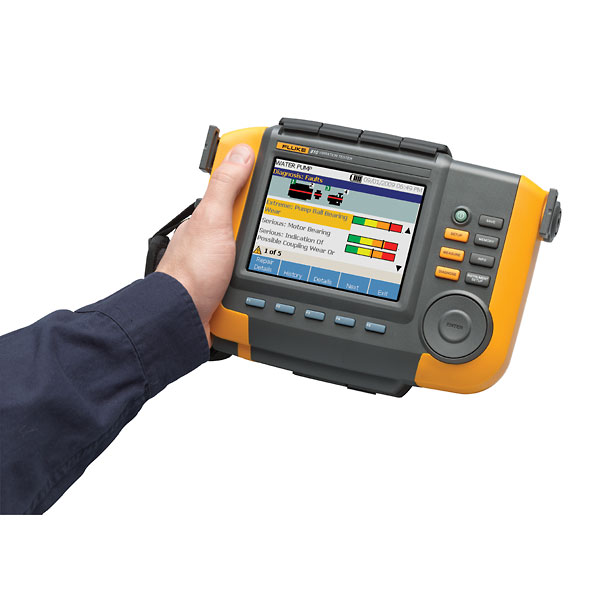

Fluke 810 Vibration Testing System

EW-65700-25
$8,499.95 USD/EACH

Usually ships in 10 days or sooner.
Qty:

  • Quickly understand machine health and condition severity

  • On-board identification and location of mechanical faults (bearings, misalignment, unbalance, looseness)

  • Focuses maintenance efforts on root cause, reducing unplanned downtime

  • Fault severity scale with four severity levels help prioritize maintenance work

  • Repair recommendations advise technicians on corrective action

  • On-board context sensitive help provides real-time tips and guidance to new users

  • 2GB expandable on-board memory provides expanded space for machinery’s data

  • Included laser tachometer for accurate machine running speed ensures diagnoses

  • Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers

  • Included viewer PC software expands data storage and tracking capacity

Available for sale only in the United States and Canada

This precision vibration tester is designed to quickly analyze motors, fans and blowers, belts and chain drives, gearboxes, pumps, compressors, spindles, and more. The intuitive interface makes set up and operation easy. Simply enter basic machine information like RPM and horsepower, and the on-board info feature provides field tips for setting up and taking measurements. Unit then detects and displays the root causes and locations of mechanical failures and provides immediate fault severity assessment and repair recommendations. The included software allows you to generate diagnostic reports, create machine setups from your PC and transfer data to the tester, view diagnosis and vibration spectra, and import and store JPEG images and Fluke IS2 thermal images for a complete view of your machine’s condition.


What's Included:
Laser tachometer and storage pouch, tri-axial TEDS accelerometer, accelerometer magnet mount, accelerometer mounting pad kit with adhesive, shoulder strap and adjustable hand strap, getting started guide, illustrated quick reference guide, viewer PC software, users manual CD-ROM, accelerometer quick-disconnect cable, mini USB to USB cable, carrying case, and smart battery pack with cable and adapters
Specifications
Product Type Handheld
Resolution 800 lines FFT
Amplitude in/sec, mm/sec, VdB (US), VdB* (Europe)
Frequency range 5 Hz to 20 kHz
Signal to noise ratio 100 dB
Dimensions 267 x 185.6 x 70 mm (W x H x D)
Dimensions (" W) 10-1/2
Dimensions (" H) 7-1/3
Dimensions (" D) 2-3/4
Sampling rate 2.56 kHz to 51.2 kHz
Dynamic range 128 dB
A/D converter 4-channel, 24-bit
Power Lithium-ion battery, 14.8 V, 2.55 Ah, or 100 to 240 Vac; 50/60 Hz
Agency approvals China RoHS, CSA, CE, C TICK, WEEE
Brand Fluke
Model 810
