EW-30008-80

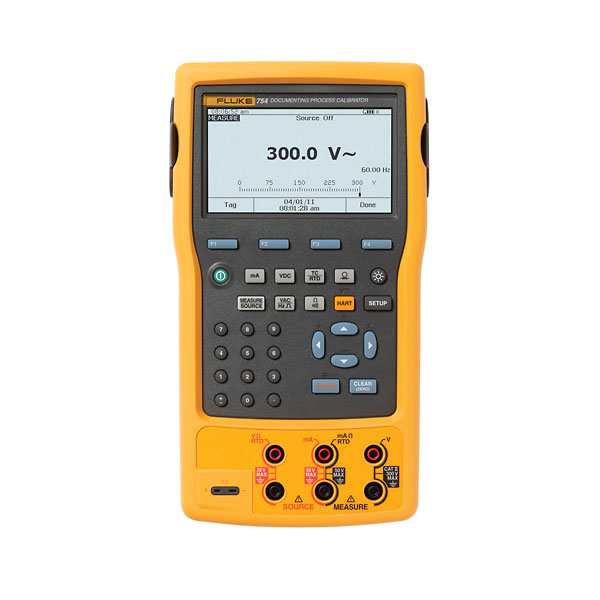

- The newest multifunction calibrator from Fluke
- Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
- Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
- Power transmitters during test using loop supply with simultaneous mA measurement
- Measure/source pressure using any of 29 Fluke pressure modules
- Measure and source simultaneously with one compact, rugged, reliable tool
- Create and run automated as-found/as-left procedures to satisfy quality programs or regulations Record and document results
- Advanced features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more
- Control the temperature of selected Hart Scientific Dry Blocks
- Handle fast pulsed RTD transmitters and PLCs in RTD source mode with 1 ms response time
- English, French, German, Italian, and Spanish languages
- Three-year warranty
- Monitor, control and calibrate HART instrumentation
- Interrogate HART devices to determine type, manufacturer,model and tag-ID
- Read HART PV, smart transmitter digital output
- Make field adjustments to ranging, damping and more
- Change/assign the HART transmitter tag
- Re-configure HART temperature sensor (e.g., TC to RTD)
- Perform HART sensor trim and output trim
- Perform HART loop test
If you like the Fluke-740 series calibrators you will love these new calibrators. With a user interface nearly identical to the popular 740 series calibrators and an improved display makes these new calibrators a winner for those used to using 740 series calibrators.
Improvements include a new brighter, bigger and easier to read display, HART connectability through the mA terminals, improved test lead set, Li-ion battery, improved RTD accuracy and more. And as an added bonus, the new 750 series DPCs include the innovative new C799 Field Softcase.The 754 includes integrated HART communication capability.This rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.
Available for sale only in the United States and Canada
What's Included:
Three sets of stackable test leads, three sets of TP220 test probes with three sets of “extended tooth” alligator clips, two sets AC280 hook clips, BP7240 Li-ion battery pack, BC7240 battery charger, C799 field soft case, USB communication cable, getting started guide, instruction manual on CDROM, NIST traceable certificate of calibration, DPC/TRACK 2 sample software that enables upload and printing of calibration records and C799 Field Soft Case. Model Fluke-754 includes HART communication cable.
| Product Type |
Process Calibrators/Meters |
| Thermocouple range |
J, K, T, E, N, U, B, R, S, and C |
| Frequency |
0 to 50 kHz |
| Operating temperature |
14 to 131°F (-10 to 55°C) |
| Accuracy |
MEASURE:
V DC: 0.025% + 0.005% of range
V AC: 0.5% + 5 counts
mA: 0.01% + 0.015% of range
Frequency: 0.05% of range
Thermocouple: 0.3°C
Ohms: 0.05% + 50 counts
RTDs: 0.3°C
Pressure: 0.05% of full scale
|
| Dimensions |
5.125 in W x 9.3125 in H x 2.375 in D |
| Power |
internal battery pack NiMH 7.2 V, 3500 mAh |
| Brand |
Fluke |
| Manufacturer number |
FLUKE-754 |
| Model |
FLUKE-754 |
