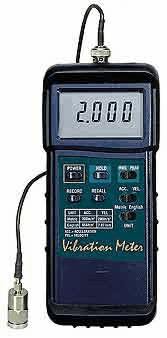

EW-98831-30
- Measure acceleration, velocity, and displacement—in RMS or peak mode, in English or metric units
- Rubber boot protects the meter in industrial environments
- Built-in RS-232 PC serial interface with optional Data Acquisition software
- Remote vibration sensor with magnetic adapter on 39" (1 m) cable
- Wide frequency range of 10 Hz to 1 kHz
- RMS or Peak Value measurement modes
- Manual/Auto store/recall up to 500 readings
- Included Windows® 95/98/NT/2000/XP compatible software allows captured readings to be downloaded to your PC for further analysis
Connect the vibration sensor to equipment via magnetic attachment or threaded stud mount. The RECORD feature stores min and max measurements for later recall, Hold feature freezes display, and auto-off function saves battery life. Download stored measurements to your PC via RS-232 interface (sold separately).
What's Included:
vibration sensor (39" [99 cm] cable), magnetic sensor attachment, rubber boot with stand, one 9 V battery, and carrying case.
| Frequency range |
10 Hz to 1 kHz |
| Vibration range (Velocity (peak)) |
0.02 to 7.87 in/s
(0.5 to 199.9 mm/s) |
| Vibration range (Acceleration) |
2 to 656 ft/s2
(0.5 to 199.9 m/s2) |
| Display |
3 1/2-digit LCD |
| Vibration range (Displacement (peak to peak)) |
0.078 in. (2 mm) |
| Low battery indicator |
Yes |
| Dimensions |
2 3/4"W x 7"H x 1 1/4"D
(7.0 x 17.8 x 3.2 cm) |
| Power |
one 9 V battery (included) |
| Accuracy |
± (5% +2 digits) |
| Model |
407860 |
at $25.60 USD/PACKAGE of 4
In stock.
at $70.00 USD/EACH
In stock.
at $27.00 USD/EACH
Usually ships in 10 days.
at $27.00 USD/EACH
Usually ships in 5 days.
at $155.00 USD/EACH
Usually ships in 8 days.
