EW-56717-20
- Weatherproof, IP65-rated housing—suitable for harsh environments
- Two-wire design with input-to-output isolation ensures clean signal transmission even in noisy locations.
- Order BNC-to-stripped wire connector (56105-60) for connection and replacement of electrodes to terminal block of transmitter.
- User-selectable, scaleable pH or ORP output with automatic temperature compensation (ATC).

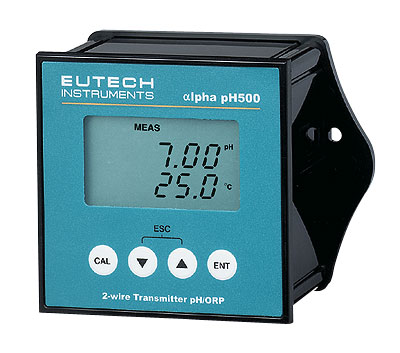

The pH 500 industrial transmitter with display allows easy setup and calibration without tools. Features input to output isolation plus it accommodates electrodes with a solution ground to operate in symmetrical mode, ensuring proper operation in electrically noisy environments. Display allows local monitoring of measurement and temperature and output signal to acentralized control, datalogging, or recording system. Mounting holes allow easy installation on plates, poles, or walls. Order ORP or pH electrodes with solution ground for the most stable measurement. Additional ORP or pH electrodes with 100 Ohm Pt RTD can be ordered seperately.
| Product Type |
Transmitter |
| Range (pH) |
0.00 to 14.00 |
| Range (Temperature) |
-10 to 110°C |
| Range (mV) |
-999 to 1000 mV |
| Accuracy (pH) |
-0.01 to 0.01 |
| Accuracy (Temperature) |
-0.5 to 0.5°C |
| Accuracy (mV) |
-2 to 2 mV |
| Resolution (pH) |
0.01 |
| Resolution (Temperature) |
0.1°C |
| Resolution (mV) |
1 mV |
| Output (Current) |
4 to 20 mA |
| Dimensions |
3.75 in L x 3.75 in W x 2.833 in H |
| Display |
Dual-line, backlit LCD |
| Power |
12 to 24 VDC |
| Housing |
IP65 |
| CE Compliance |
Yes |
| Brand |
Eutech Instruments |
