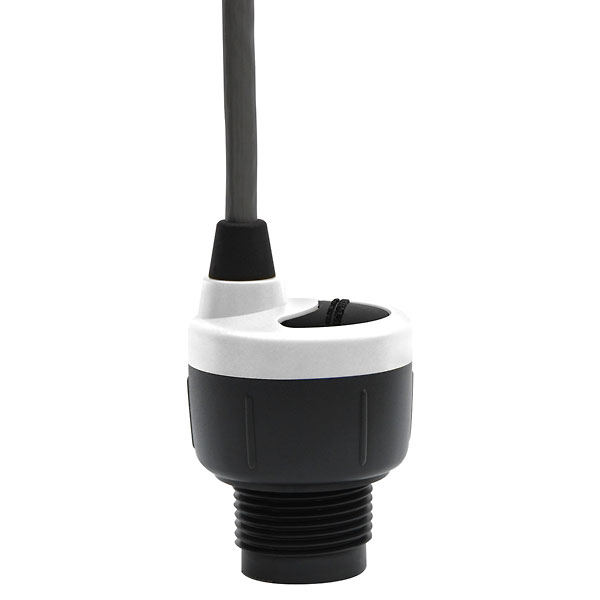

EchoPod (White) Level Trans.-1.25m range, 1" NPT

EW-07505-98
$305.00 USD/EACH

  • An integrated control automation solution that provides noncontact level measurement with switch and control capabilities

  • Compact design allows for installation in applications with limited mounting options and space

  • Measures dirty, sticky and corrosive media without affecting product performance

  • Advanced Digital Signal Processing provides surface imaging in applications with obstacles in the beam width

  • A single unit can provide switch, control and measurement capabilities simultaneously or individually

EchoPod's relays can be configured on a single set point alarm or latched on two sets for automatic fill or empty in simplex or duplex control modes with fail-safe logic. The embedded controller can replace external control hardware. The sensor is well suited for a wide range of corrosive, sticky or dirty type media. EchoPod is broadly selected for day tanks, sumps, IBC totes, lift stations and mini-bulk storage applications.

DL24 Ultrasonic Multifunction Transmitter, Switch & Controller
The general purpose, ultrasonic sensor provides non-contact level detection up to 98.4'' (2.5m) with 4 SPST 60 VA 1A relays and a two-wire 4-20 mA level measurement output.

DL14 Ultrasonic Multifunction Transmitter, Switch & Controller
The general purpose, ultrasonic sensor provides non-contact level detection up to 49.2'' (1.25m) with 4 SPST 60 VA 1A relays and a two-wire 4-20 mA level measurement output.

DS14 Ultrasonic Switch & Controller with (4) Relays
The general purpose, ultrasonic sensor provides non-contact level detection up to 49.2'' (1.25m) with 4 SPST 60 VA 1A relays. The DS14 directly replaces contact switches connected to a PLC with 1-4 discrete points for easy design conversion or field retrofit.

DX10 Ultrasonic Sensor with Voltage & Frequency Output
The general purpose, DX10 ultrasonic sensor provides non-contact level measurement up to 49.2'' (1.25m) with a 0-5 VDC, 0-10 VDC or 976-2000 Hz. frequency output. Select the voltage output to directly replace a contact measurement sensor connected to a PLC analog input. Select the frequency output to replace a contact measurement sensor or switch assembly, and eliminate the cost of an analog input card by connecting the DX10 to a PLC discrete input.

DL10 Ultrasonic Transmitter with 4-20 mA Output
The general purpose, DL10 ultrasonic sensor provides non-contact level measurement up to 49.2'' (1.25m) with a 4-20 mA output. The DL10 directly replaces contact measurement sensors connected to a PLC analog input card for easy design conversion or field retrofit. The two-wire, 4-20 mA output is ideal for longer signal distances up to 1000'.



Note: WebCal software is required for configuration and setup of EchoPod. Download WebCal for free.
Specifications
Product Type Ultrasonic Level Controls
Wetted parts PVDF
Mount 1" NPT
Temp range 20° to 140°F
Relay output 4 to 20 mA, two wire
Range 49.2 in (1.25 m)
Resolution 0.019" (0.5 mm)
Housing PC/ABS plastic
Power (VDC) 24 VDC (loop)
Accuracy 0.125 in (3.2 mm)
Brand Flowline
Manufacturer number DL10-00
Model DL10-00

Accessories
Qty/Price
Availability

at $50.00 USD/EACH

In stock.
Add to Cart




Technical Resources
  • This brief video describes how to use the Flowline PC-based configuration software for the EchoPod and EchoSonic II family of sensors.
    		•
