EW-70612-00
Usually ships in 14 days.
Qty:
- Save money by accurately dispensing expensive fluids—to ±0.5%
- Automatically dispense preset volumes of fluid from drums, tanks, and storage containers
- Control transfer of highly corrosive fluids directly from the storage container
- Save up to seven preset volumes in the automatic batch memory
Batch control drum pumps are ideal for applications in chemical packaging, waste water treatment, chemical manufacturing, plating, semi-conductor, pharmaceutical and agricultural industries.

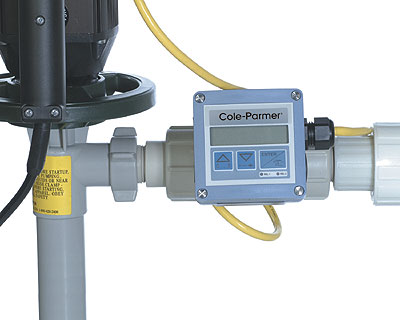

These systems are engineered to control, measure and dispense controlled volumes of fluid from drums, tanks and small storage vessels. Simply select the desired volume to transfer, press the enter key and watch the pump accurately dispense the fluid.
Systems are available with either polypropylene or PVDF pump tubes for chemical compatibility with your fluid. Flow rate can be displayed in gallons, Imperial gallons, liters, milliliters, or cubic meters per minute, second, or hour. Volume can be displayed in gallons, Imperial gallons, liters, milliliters, or cubic meters. Select from five different languages for display: English, German, French, Italian or Spanish. Flow meters also feature a re-settable totalizer, EEprom electronics, and a paddle wheel design for continuous flow measurement of neutral and aggressive solid-free fluids.
What's Included:
motor, pump tube, batch control meter, check valve and hose barb.
| Product Type |
Batch Control Drum Pumps |
| Tube length (in.) |
39 |
| Wetted parts |
Polypropylene |
| Connections (outlet) |
1" hose barb or 1" NPT thread |
| Max flow rate (GPM) |
25 |
| Max flow rate (LPM) |
94.64 |
| Max temperature (º C) |
130 |
| Max viscosity |
300 cp |
| Motor (type) |
ODP |
| Motor (rpm) |
10,000 |
| Motor (hp) |
1 |
| Power (VAC) |
110 |
| Power (Hz) |
60 |
| Brand |
Cole-Parmer |
