EW-98622-00

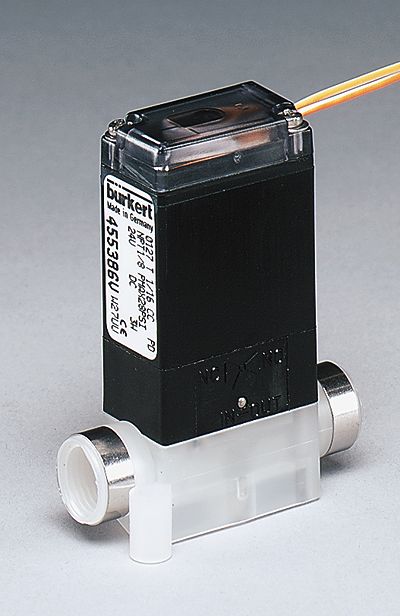

Choose the rocker or flipper two-, or three-way solenoid valve with different connection options to better suit your application needs. Rocker and flipper design are available in two–way direct-acting, NC; and three–way direct-acting, universal functions with any flow direction. The valve design features an isolation diaphragm that separates liquid from the actuator. This unique quality promotes heat transfer elimination as coil is not directly in contact with diaphragm. Both rocker and flipper valves have been proven in thousands of applications throughout the world and offer the highest life cycle available, over 100 million actuation cycles. Valves have minimal internal volume that is easily purged.
Use solenoid valves for chemical and laboratory applications. All valves are ideal for manifold mounting. Order manifolds at right.Rocker Valves have a miniature rocker that operates the isolated diaphragm to separate actuator from the media. Valve is only 16 mm wide. Each valve is equipped with an LED display and push-on tube connections. Valves include two 19" electrical leads.
| Product Type |
Solenoid Electric Valves (actuated) |
| Temp range |
131°F (55°C) |
| Watts |
3.4 |
| Wetted materials |
PVDF body, FFKM seals |
| Cv |
0.046 |
| Actuation time |
30 ms |
| Pressure range |
0 to 28 psi |
| Pilot valve air connection |
0.25-28 UNF |
| Housing |
IP65 with cable plug |
| Max temperature (º F) |
131 |
| Max temperature (º C) |
55 |
| Orifice (" Dia) |
0.0625 |
| Tubing (mm) |
0.25-28 UNF |
| Power (VDC) |
24 |
| Brand |
Cole-Parmer |
| Model |
455 330 G |
| Manufacturer number |
455 330 G |
at $44.00 USD/EACH
In stock.
at $471.00 USD/EACH
Call 1-888-358-4705 for availability.
at $440.00 USD/EACH
Call 1-888-358-4705 for availability.
at $71.00 USD/EACH
Usually ships in 9 days.
