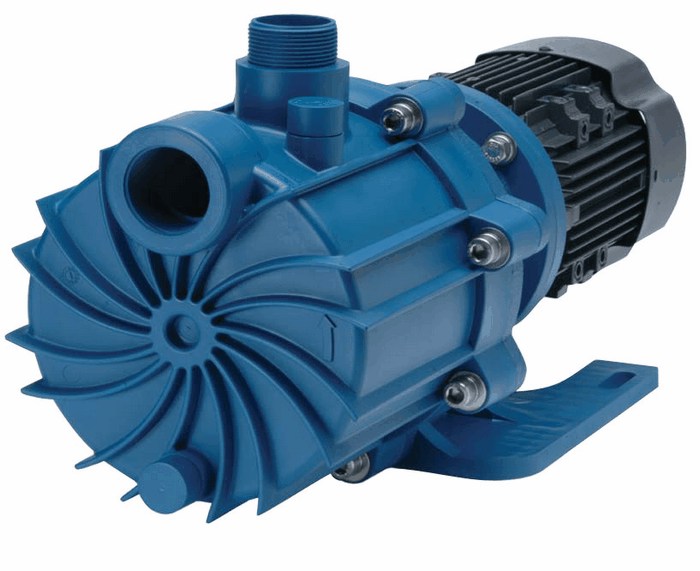

Cole-Parmer Sealless Centrifugal Pump, Self-Priming PVDF Magnetic Drive, 110GPM - 72FT, three phase, 2HP, TEFC Motor

EW-72225-30
$4,294.00 USD/EACH

Usually ships in 14 days.
Qty:

  • Experience up to 70% operating efficiency in addition to greater reliability compared to sealed pumps

  • Powerful, rare earth magnetic coupling uses standard NEMA (60 Hz) motor

  • Greater efficiency translates into reduction in energy usage

  • High working pressure safely handles high specific gravity fluids

  • Superior lift capability lifts fluid from as deep as 25 feet below the pump

  • Fast priming—primes from 18 feet in as little as 90 seconds

These Cole-Parmer horizontal, self-priming, PVDF magnetic drive centrifugal pumps offer many features which improve performance. The volute and impeller design allow for high efficiency, resulting in energy usage reduction, especially when compared to other established pump technologies. As a result of the high working pressure, high specific gravity fluids can be safely pumped. Another benefit is the protection against unexpected surges in system pressure. The standard NPT or BSP connections allow for easy installation. The wetted materials of construction were chosen and engineered for aggressive liquids.

Pumps feature carbon bushings that allow extended run-dry ability. The thrust balance system has generous balance holes and rear sealing ring to reduce axial thrust. The replaceable dual bushings ride evenly on the shaft for optimal alignment and reliability. The internal spiral groove helps to flush and lubricate the bushings during operation. PTFE bushings are the ideal choice for chemicals like sodium hypochlorite (bleach), chromic acid, chrome plating solutions, and nitric, chromic, and hydrofluoric acids.

Self-priming centrifugal pumps are extremely versatile. The priming ability allows the pumps to handle applications difficult for standard centrifugal pumps, such as pumping fluid from below grade, emptying tanker trucks or rail cars, and transferring fluids from the top of tall bulk storage tanks to reduce the possibility of leaks from sidewall-mounted bulkhead fittings.
What's Included:
Conduit box for hardwiring.
Specifications
Product Type Magnetic Drive Centrifugal Pumps
Max flow rate (GPM) 110
Max flow rate (LPM) 416
Max head (ft) 72
Max head (m) 21.9
Max system pressure (psi) 90
Motor (phase) 3
Motor (rpm) 3450
Motor (VAC) 230/460
Motor (Hz) 60
Motor (Amps) 5.15/2.58
Motor (hp) 2
Motor (type) TEFC
Wetted materials Carbon-filled PVDF impeller, 99.9% alumina ceramic, PTFE bushing, Viton® O-ring
Max fluid temp (º F) 220
Max fluid temp (º C) 104
Duty cycle Continuous
Connections (inlet) 1-1/2" NPT(F)
Connections (outlet) 1-1/2" NPT(M)
Suction lift 25 ft H2O
CE Compliance Yes
Dimensions 22-25/32"L x 9-23/32"W x 11-1/8"H
(57.8 x 24.7 x 28.2 cm)
Brand Cole-Parmer
