Home  >  Pumps > Positive Displacement Pumps > Air-Driven Pumps > Air-Powered Double-Diaphragm Pumps > Air-Operated Double Diaphragm Pumps

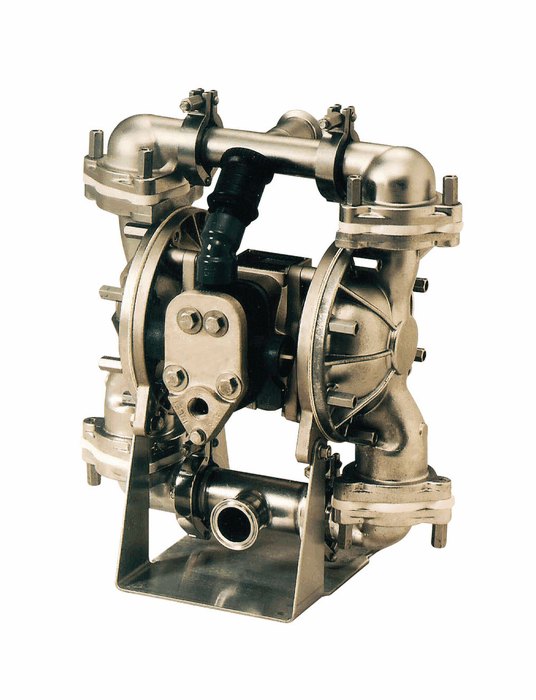

Air-operated Diaphragm Pump, FDA-Compliant, 1-1/2" Triclamp, 106gpm

EW-74440-60
$3,121.00 USD/EACH

Call 1-888-358-4705 for availability.
Qty:

  • Complies for applications in food processing, pharmaceutical, and cosmetic applications.

  • Handle abrasive and shear-sensitive materials

  • Self-priming up to 24 ft of water

  • Deadhead against closed discharge without damage

Air distribution system can be serviced external to the pump allowing for true in-line maintenance. The air valve is guaranteed not to stall.

USDA AODD's wetted materials are electropolished 316 and 302/304 stainless steel. Non-wetted materials are electroless nickel-plated aluminum and polypropylene. FDA AODD's wetted materials are FDA-compliant stainless steel. All models pumps are fitted with white food-grade nitrile elastomers.
Specifications
Product Type Air-Powered Diaphragm Pumps
Wetted materials Stainless steel body, food-grade Santoprene® diaphragms, check valves, & valve seats
Port size 2" Tri-Clamp
Max flow rate (LPM) 401.3
Max viscosity (cp) 11,000
Max pressure 100 psi
Min temperature (º C) -23
Max temperature (º C) 88
Min temperature (º F) -10
Max temperature (º F) 190
Run dry Yes
Suction lift (wet) 24 ft
Air inlet (SCFM) 10 to 55 scfm
Air inlet (connection) 3/4" NPT(F)
Air inlet (max psi) 100
Duty cycle Continuous
Dimensions 16-3/4"L x 12-3/8"W x 21-7/8"H
Brand Warren Rupp
Manufacturer number T15B1SDSWTS600
Model T15B1SDSWTS000
